Visualizing AI Agents: A Beginner's Guide to Microsoft's Framework
Understanding the new frontier of AI applications through clear visual representations
As AI continues to evolve, a new paradigm is emerging: AI agents. Often described as "the new apps for an AI-powered world," these intelligent systems are transforming how we interact with technology. In this guide, I'll walk you through Microsoft's comprehensive framework for AI agents, using clear visualizations to demystify complex concepts and help you understand how these powerful tools can be implemented in real-world scenarios.
Introduction to AI Agents
AI agents represent a significant evolution in artificial intelligence technology. Unlike traditional AI applications that perform specific, predefined tasks, AI agents can perceive their environment, make decisions, and take actions to achieve goals. As Microsoft's Chief Marketing Officer for AI at Work, Jared Spataro, aptly puts it, these are "the new apps for an AI-powered world."
At their core, AI agents consist of three fundamental components:
flowchart TD
A[AI Agent] --> B[Sensors]
A --> C[Environment Interaction]
A --> D[Decision-Making]
B --> B1[Gather Information]
B --> B2[Interpret Data]
C --> C1[Tools & API Access]
C --> C2[System Integration]
D --> D1[Goal Planning]
D --> D2[Action Selection]
D --> D3[Learning & Adaptation]
style A fill:#FF8000,stroke:#333,stroke-width:2px
style B fill:#66BB6A,stroke:#333,stroke-width:1px
style C fill:#42A5F5,stroke:#333,stroke-width:1px
style D fill:#EC407A,stroke:#333,stroke-width:1px
I find that understanding AI agents requires a shift in how we think about AI systems. Instead of seeing them as static tools that respond to specific inputs, we need to view them as dynamic entities that can:
- Perceive and interpret their environment (through sensors)
- Interact with external tools and systems
- Make autonomous decisions to achieve defined goals
- Learn and adapt based on feedback and experiences
For example, a travel booking AI agent doesn't just respond to commands like "book me a flight." Instead, it can understand the context of a trip, consider user preferences, access multiple travel systems, compare options, and make recommendations—all while explaining its reasoning.
Visualizing these complex interactions is challenging, which is where tools like PageOn.ai become invaluable. With PageOn.ai, I can transform abstract AI agent concepts into clear, intuitive visual representations that make it easier to understand how these systems work and communicate their value to stakeholders.
Architecture of Microsoft's AI Agents Framework
Microsoft has developed a comprehensive framework for understanding and building AI agents, structured as an 11-lesson course called "AI Agents for Beginners." This course takes learners from fundamental concepts to practical implementation, providing a solid foundation for agent development.
The course progression follows a logical path that builds knowledge incrementally:
At the heart of Microsoft's framework is the relationship between Large Language Models (LLMs) and AI agent systems. While LLMs provide the cognitive foundation, agents add crucial capabilities for interacting with the world and accomplishing tasks.
flowchart TB
subgraph "AI Agent System"
LLM[Large Language Model]
Tools[Tool Integration]
Memory[Memory Systems]
Planning[Planning & Reasoning]
LLM <--> Tools
LLM <--> Memory
LLM <--> Planning
end
User[User] <--> AI
AI <--> External[External Systems]
style AI fill:#FF8000,stroke:#333,stroke-width:2px
style LLM fill:#42A5F5,stroke:#333,stroke-width:1px
style Tools fill:#66BB6A,stroke:#333,stroke-width:1px
style Memory fill:#EC407A,stroke:#333,stroke-width:1px
style Planning fill:#FFD54F,stroke:#333,stroke-width:1px
I've found that custom AI agents can be better understood when visualized as modular systems. PageOn.ai's AI Blocks feature is particularly useful for creating clear representations of these complex architectures, helping teams collaborate more effectively on agent development.
The Microsoft framework emphasizes how AI agents interact with their environment through a combination of:
- Language understanding and generation (via LLMs)
- Tool selection and execution
- Memory management for context retention
- Planning and reasoning capabilities
This modular approach allows developers to focus on specific components while maintaining a holistic understanding of the entire agent system.
Core AI Agent Design Patterns
Microsoft's AI Agents framework identifies several key design patterns that serve as architectural blueprints for creating effective agents. Let's explore the three most important patterns and how they can be visualized.
Tool Use Design Pattern
The Tool Use pattern enables AI agents to extend their capabilities by leveraging external tools and APIs. This is a fundamental pattern that allows agents to interact with the world beyond their language model.
sequenceDiagram
participant User
participant Agent
participant ToolManager
participant Tool1
participant Tool2
User->>Agent: Request action
Agent->>Agent: Analyze request
Agent->>ToolManager: Query available tools
ToolManager-->>Agent: Return tool descriptions
Agent->>Agent: Select appropriate tool
Agent->>Tool1: Execute with parameters
Tool1-->>Agent: Return results
Agent->>Agent: Process results
Agent->>User: Respond with solution
Note over Agent,ToolManager: Tool selection based on
task requirements
I've found that effective tool use implementation requires careful consideration of:
- Tool discovery and selection mechanisms
- Parameter formatting and validation
- Error handling and fallback strategies
- Result interpretation and integration
Agentic RAG (Retrieval-Augmented Generation)
Agentic RAG combines the power of knowledge retrieval with generative capabilities, allowing agents to access and leverage external knowledge sources dynamically.
The Agentic RAG pattern involves several key components:
flowchart TD
Query[User Query] --> Agent
Agent --> QueryAnalysis[Query Analysis]
QueryAnalysis --> Retrieval[Knowledge Retrieval]
Retrieval --> KnowledgeBase[(Knowledge Base)]
KnowledgeBase --> RetrievedInfo[Retrieved Information]
RetrievedInfo --> Context[Context Formation]
Context --> Generation[Response Generation]
Generation --> Response[Final Response]
style Agent fill:#FF8000,stroke:#333,stroke-width:2px
style QueryAnalysis fill:#66BB6A,stroke:#333,stroke-width:1px
style Retrieval fill:#42A5F5,stroke:#333,stroke-width:1px
style Context fill:#EC407A,stroke:#333,stroke-width:1px
style Generation fill:#FFD54F,stroke:#333,stroke-width:1px
With ai agents becoming more sophisticated, the ability to visualize complex information flows using tools like PageOn.ai makes it easier to understand and optimize these systems.
Planning Design Pattern
The Planning pattern enables agents to break down complex goals into manageable steps, creating and executing plans dynamically.
flowchart TD
Goal[User Goal] --> Agent
Agent --> Analysis[Goal Analysis]
Analysis --> Planning[Plan Creation]
Planning --> Plan[Step-by-Step Plan]
Plan --> Step1[Step 1]
Plan --> Step2[Step 2]
Plan --> Step3[Step 3]
Plan --> StepN[Step N...]
Step1 --> Execution1[Execute]
Step2 --> Execution2[Execute]
Step3 --> Execution3[Execute]
StepN --> ExecutionN[Execute]
Execution1 --> Monitoring[Monitor Progress]
Execution2 --> Monitoring
Execution3 --> Monitoring
ExecutionN --> Monitoring
Monitoring --> Adaptation[Adapt Plan If Needed]
Adaptation --> |Success| Completion[Goal Completion]
Adaptation --> |Adjustment Needed| Planning
style Agent fill:#FF8000,stroke:#333,stroke-width:2px
style Analysis fill:#66BB6A,stroke:#333,stroke-width:1px
style Planning fill:#42A5F5,stroke:#333,stroke-width:1px
style Monitoring fill:#EC407A,stroke:#333,stroke-width:1px
style Adaptation fill:#FFD54F,stroke:#333,stroke-width:1px
I've observed that effective planning agents must balance several considerations:
- Goal decomposition into logical steps
- Resource allocation and constraint handling
- Progress monitoring and plan adaptation
- Handling unexpected outcomes and failures
PageOn.ai's visualization tools are particularly valuable for creating interactive flowcharts that demonstrate agent reasoning processes, making complex planning logic more accessible to both technical and non-technical stakeholders.
Building Practical AI Agents
Moving from theory to practice, let's explore how to create your first AI agent using Microsoft's framework. The development process follows a structured workflow that can be visualized to make implementation more straightforward.
The development workflow typically includes these key phases:
flowchart LR
Requirements[Define Requirements] --> Design[Design Agent Architecture]
Design --> Select[Select Framework]
Select --> Implement[Implement Core Logic]
Implement --> Tools[Integrate Tools]
Tools --> Test[Test & Iterate]
Test --> Deploy[Deploy]
style Requirements fill:#FF8000,stroke:#333,stroke-width:1px
style Design fill:#66BB6A,stroke:#333,stroke-width:1px
style Select fill:#42A5F5,stroke:#333,stroke-width:1px
style Implement fill:#EC407A,stroke:#333,stroke-width:1px
style Tools fill:#FFD54F,stroke:#333,stroke-width:1px
style Test fill:#FF8000,stroke:#333,stroke-width:1px
style Deploy fill:#66BB6A,stroke:#333,stroke-width:1px
When building an AI agent, it's essential to consider the specific use case and select the appropriate design patterns. Here's a comparison of common agent use cases:
| Use Case | Primary Pattern | Key Components | Complexity |
|---|---|---|---|
| Customer Support | Agentic RAG | Knowledge base, FAQ retrieval | Medium |
| Data Analysis | Tool Use | Data connectors, visualization tools | High |
| Task Automation | Planning | Workflow orchestration, API access | Medium |
| Personal Assistant | Hybrid (All patterns) | Calendar, email, search integration | Very High |
I've found that using ai agent interaction diagrams helps teams align on the agent's purpose and functionality before diving into code. PageOn.ai's Deep Search feature is particularly useful for integrating relevant code snippets and documentation during the development process.
Practical implementation typically involves these steps:
- Define the agent's purpose and success criteria
- Select the appropriate agent framework (e.g., Microsoft's Semantic Kernel)
- Design the core agent architecture based on selected patterns
- Implement tool integrations and knowledge sources
- Develop reasoning and planning capabilities
- Test with diverse scenarios and refine the agent's behavior
- Deploy with appropriate monitoring and feedback mechanisms
Multi-Agent Systems and Collaboration
As AI agent capabilities grow, one of the most exciting developments is the emergence of multi-agent systems. These systems involve multiple specialized agents working together to solve complex problems that would be difficult for a single agent to handle.
Multi-agent architectures typically follow one of several organizational patterns:
flowchart TD
User[User] --> Orchestrator[Orchestrator Agent]
Orchestrator --> AgentA[Research Agent]
Orchestrator --> AgentB[Planning Agent]
Orchestrator --> AgentC[Execution Agent]
Orchestrator --> AgentD[Evaluation Agent]
AgentA --> |Knowledge| SharedMemory[(Shared Memory)]
AgentB --> |Plans| SharedMemory
AgentC --> |Results| SharedMemory
AgentD --> |Feedback| SharedMemory
SharedMemory --> AgentA
SharedMemory --> AgentB
SharedMemory --> AgentC
SharedMemory --> AgentD
Orchestrator --> |Final Response| User
style User fill:#66BB6A,stroke:#333,stroke-width:1px
style Orchestrator fill:#FF8000,stroke:#333,stroke-width:2px
style SharedMemory fill:#EC407A,stroke:#333,stroke-width:1px
style AgentA fill:#42A5F5,stroke:#333,stroke-width:1px
style AgentB fill:#42A5F5,stroke:#333,stroke-width:1px
style AgentC fill:#42A5F5,stroke:#333,stroke-width:1px
style AgentD fill:#42A5F5,stroke:#333,stroke-width:1px
I've found that effective multi-agent systems require careful consideration of several factors:
- Communication protocols between agents
- Task distribution and specialization
- Conflict resolution mechanisms
- Shared knowledge representation
- Coordination and orchestration strategies
The benefits of multi-agent systems include:
Creating visual representations of multi-agent architectures using PageOn.ai helps teams understand complex agent interactions and identify potential bottlenecks or communication issues before they become problems in production.
As AI assistants become more sophisticated, multi-agent systems represent the next frontier in creating truly intelligent and capable AI solutions.
AI Agent Deployment and Production
Moving AI agents from development to production requires careful planning and consideration of infrastructure, security, and operational requirements.
flowchart TD
Dev[Development Environment] --> Testing[Testing & Validation]
Testing --> Staging[Staging Environment]
Staging --> Prod[Production Environment]
subgraph "Production Infrastructure"
LLM[LLM Service]
Tools[Tool Services]
Monitoring[Monitoring]
Logging[Logging]
Security[Security Layer]
LLM <--> Security
Tools <--> Security
Security <--> Monitoring
Security <--> Logging
end
Prod --> Production
style Dev fill:#66BB6A,stroke:#333,stroke-width:1px
style Testing fill:#42A5F5,stroke:#333,stroke-width:1px
style Staging fill:#FFD54F,stroke:#333,stroke-width:1px
style Prod fill:#FF8000,stroke:#333,stroke-width:1px
style Production fill:#EC407A,stroke:#333,stroke-width:2px
style Security fill:#AB47BC,stroke:#333,stroke-width:1px
When deploying AI agents to production, I focus on several key considerations:
Infrastructure Requirements
- Scalable compute resources
- High-availability configuration
- Load balancing for multiple instances
- Caching strategies for improved performance
- Appropriate storage solutions
Security Considerations
- Authentication and authorization
- Data encryption (in transit and at rest)
- Input validation and sanitization
- Rate limiting and abuse prevention
- Regular security audits
Monitoring and Observability
- Performance metrics collection
- Error tracking and alerting
- Usage analytics and patterns
- Response quality evaluation
- System health dashboards
Operational Procedures
- Version control and release management
- Rollback procedures
- Continuous integration/deployment
- Backup and disaster recovery
- Documentation and knowledge sharing
Creating professional documentation and visual guides for stakeholders is essential for successful deployment. PageOn.ai helps create clear deployment architecture diagrams that make complex infrastructure requirements more understandable for both technical and non-technical team members.
Microsoft's approach to AI agent deployment emphasizes the importance of monitoring and continuous improvement. By collecting usage data and feedback, teams can iteratively enhance agent capabilities and address any issues that arise in production.
Building Trustworthy AI Agents
As AI agents become more autonomous and integrated into critical systems, building trust through responsible development practices becomes essential. Microsoft's framework emphasizes several key principles for creating trustworthy AI agents.
The core principles of trustworthy AI agent development include:
I've found that implementing transparency and explainability in AI agents requires deliberate design choices:
flowchart TD
Request[User Request] --> Agent
Agent --> Reasoning[Reasoning Process]
Reasoning --> Sources[Information Sources]
Reasoning --> Confidence[Confidence Levels]
Reasoning --> Alternatives[Alternative Options]
Sources --> Response[Transparent Response]
Confidence --> Response
Alternatives --> Response
Response --> Feedback[User Feedback]
Feedback --> Agent
style Agent fill:#FF8000,stroke:#333,stroke-width:2px
style Reasoning fill:#66BB6A,stroke:#333,stroke-width:1px
style Response fill:#42A5F5,stroke:#333,stroke-width:1px
style Feedback fill:#EC407A,stroke:#333,stroke-width:1px
Creating clear documentation of agent limitations and capabilities is crucial for setting appropriate user expectations. PageOn.ai helps develop visual explanations of complex AI behaviors for non-technical audiences, making it easier to communicate how AI agents make decisions and what factors influence their outputs.
Microsoft's approach to responsible AI agent development includes:
- Clear disclosure when users are interacting with AI systems
- Transparent attribution of information sources
- Explanation of confidence levels and uncertainty
- Mechanisms for user feedback and correction
- Ongoing monitoring for bias and fairness issues
As Sarah Bird, Microsoft's chief product officer of Responsible AI, notes, there are "extra safety considerations with agents that can act autonomously," making it essential to ensure agents only access what users want them to and operate within clearly defined boundaries.
No-Code AI Agent Development

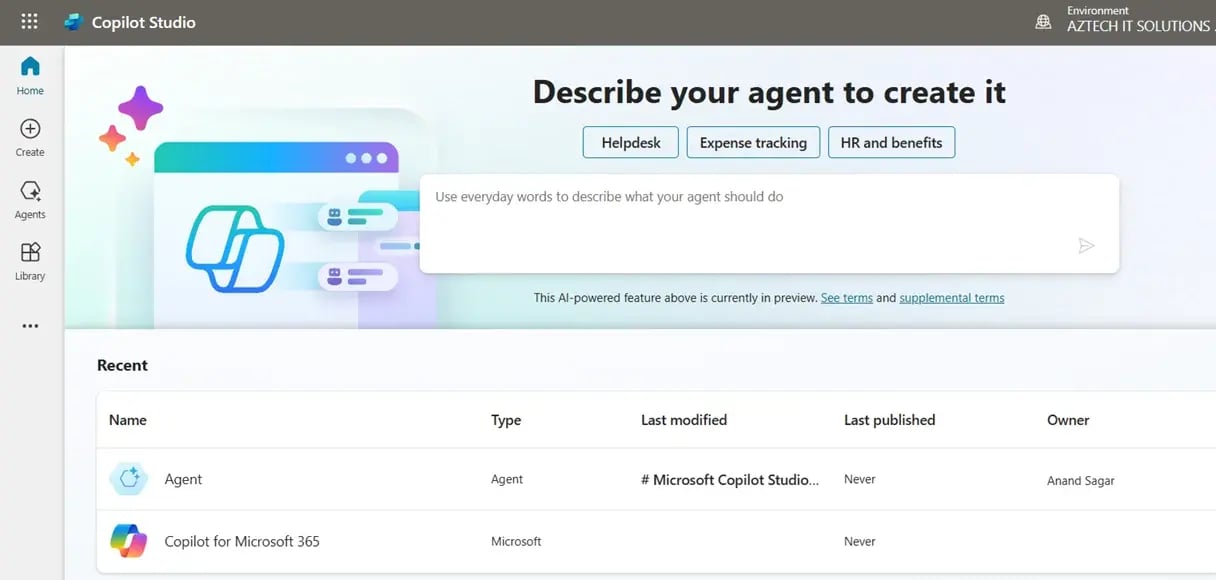

One of the most exciting developments in the AI agent ecosystem is the emergence of no-code tools that democratize agent creation. Microsoft 365 Copilot Agent Builder represents a significant step forward in making AI agent development accessible to non-technical users.
The no-code agent development process typically follows these steps:
flowchart LR
Define[Define Agent Purpose] --> Configure[Configure Knowledge Sources]
Configure --> Customize[Customize Prompts]
Customize --> Test[Test & Refine]
Test --> Share[Share with Team]
style Define fill:#FF8000,stroke:#333,stroke-width:1px
style Configure fill:#66BB6A,stroke:#333,stroke-width:1px
style Customize fill:#42A5F5,stroke:#333,stroke-width:1px
style Test fill:#EC407A,stroke:#333,stroke-width:1px
style Share fill:#FFD54F,stroke:#333,stroke-width:1px
Key benefits of no-code AI agent development include:
Reduction in development time
More agents created by teams
Created by non-technical users
Microsoft 365 Copilot Agent Builder allows users to:
- Define the agent's purpose and capabilities
- Connect knowledge sources like documents, websites, and databases
- Customize the agent's personality and communication style
- Test the agent's responses in various scenarios
- Share the agent with team members for collaboration
PageOn.ai can help document and share no-code agent creation processes, making it easier for teams to collaborate on agent development and maintain consistent documentation as agents evolve over time.
Future Directions in AI Agent Development
The field of AI agents is evolving rapidly, with several emerging trends and technologies shaping the future landscape. Understanding these trends can help developers and organizations prepare for the next generation of AI agent capabilities.
Key trends in AI agent development include:
flowchart TD
Current[Current State] --> Multimodal[Multimodal Agents]
Current --> Autonomous[Increased Autonomy]
Current --> Specialized[Domain Specialization]
Current --> Personalized[Personalization]
Multimodal --> Future[Future of AI Agents]
Autonomous --> Future
Specialized --> Future
Personalized --> Future
Future --> Applications[New Applications]
Future --> Integration[Deeper Integration]
Future --> Collaboration[Human-AI Collaboration]
style Current fill:#FF8000,stroke:#333,stroke-width:2px
style Future fill:#EC407A,stroke:#333,stroke-width:2px
style Multimodal fill:#66BB6A,stroke:#333,stroke-width:1px
style Autonomous fill:#66BB6A,stroke:#333,stroke-width:1px
style Specialized fill:#66BB6A,stroke:#333,stroke-width:1px
style Personalized fill:#66BB6A,stroke:#333,stroke-width:1px
style Applications fill:#42A5F5,stroke:#333,stroke-width:1px
style Integration fill:#42A5F5,stroke:#333,stroke-width:1px
style Collaboration fill:#42A5F5,stroke:#333,stroke-width:1px
I'm particularly excited about these emerging capabilities:
Multimodal Intelligence
Future AI agents will seamlessly process and generate content across text, images, audio, and video, enabling more natural and comprehensive interactions.
This will allow agents to understand and respond to the full richness of human communication, including visual cues, tone of voice, and contextual elements.
Enhanced Autonomy
As trust and capabilities grow, AI agents will take on more autonomous roles, handling complex workflows with minimal human intervention.
This will require advances in reasoning, planning, and safety mechanisms to ensure agents operate responsibly within their defined boundaries.
Specialized Domain Expertise
Rather than general-purpose agents, we'll see more highly specialized agents with deep expertise in specific domains like medicine, law, engineering, and more.
These specialized agents will combine domain-specific knowledge with the ability to access and interpret specialized tools and data sources.
Personalized Learning
Future agents will develop more sophisticated personalization capabilities, adapting to individual user preferences, communication styles, and needs over time.
This personalization will make interactions more efficient and effective while maintaining appropriate privacy boundaries.
Using PageOn.ai to create forward-looking visualizations of agent potential helps organizations prepare for these emerging capabilities and identify strategic opportunities for implementation.
Staying updated with Microsoft's AI agent ecosystem involves:
- Following Microsoft Learn resources and documentation
- Participating in community forums and discussions
- Attending Microsoft AI events and webinars
- Experimenting with preview features and capabilities
- Connecting with other developers building on the platform
Resources and Next Steps
To continue your journey with Microsoft's AI agents framework, I've compiled a comprehensive set of resources and next steps.
Microsoft Learning Resources
Courses and Tutorials
- AI Agents for Beginners (11-lesson course)
- Get started with AI agent development on Azure
- Introduction to Developing AI Agents
- Microsoft 365 Copilot Agent Builder tutorials
- Generative AI For Beginners (21-lesson course)
Documentation and Guides
- Microsoft Learn AI agent documentation
- Semantic Kernel framework documentation
- Azure AI Foundry Agent Service guides
- Microsoft 365 Copilot developer docs
- Responsible AI guidelines for agents
Community Resources
Forums and Communities
- Microsoft Tech Community AI discussions
- GitHub repository for AI Agents for Beginners
- Stack Overflow tags for Microsoft AI agents
- Microsoft AI Discord server
- LinkedIn groups for AI agent developers
Events and Webinars
- Microsoft Build conference sessions
- AI agent developer workshops
- Microsoft Reactor events
- Microsoft Learn Live sessions
- Community hackathons and challenges
To organize and visualize your ongoing learning journey, PageOn.ai offers powerful tools for creating personalized learning roadmaps, tracking progress, and documenting key concepts and insights.
flowchart TD
Start[Start Here] --> Fundamentals[Learn Fundamentals]
Fundamentals --> Patterns[Explore Design Patterns]
Patterns --> Hands[Hands-On Projects]
Hands --> Advanced[Advanced Concepts]
Advanced --> Contribute[Contribute to Community]
Fundamentals -.-> Resources1[Microsoft Learn Courses]
Patterns -.-> Resources2[Design Pattern Documentation]
Hands -.-> Resources3[GitHub Code Samples]
Advanced -.-> Resources4[Research Papers & Case Studies]
Contribute -.-> Resources5[Open Source Projects]
style Start fill:#FF8000,stroke:#333,stroke-width:2px
style Fundamentals fill:#66BB6A,stroke:#333,stroke-width:1px
style Patterns fill:#42A5F5,stroke:#333,stroke-width:1px
style Hands fill:#EC407A,stroke:#333,stroke-width:1px
style Advanced fill:#FFD54F,stroke:#333,stroke-width:1px
style Contribute fill:#AB47BC,stroke:#333,stroke-width:1px
As you continue your AI agent journey, remember that visualization tools like PageOn.ai can help you:
- Document your learning progress and insights
- Create clear diagrams of agent architectures you develop
- Share complex concepts with team members and stakeholders
- Build comprehensive documentation for your AI agent projects
Transform Your Visual Expressions with PageOn.ai
Ready to create stunning visualizations of AI agents and complex systems? PageOn.ai provides the tools you need to transform abstract concepts into clear, compelling visual representations that enhance understanding and drive collaboration.
Start Creating with PageOn.ai TodayFinal Thoughts
Microsoft's AI Agents for Beginners framework provides a comprehensive foundation for understanding and building AI agents. From fundamental concepts to advanced implementation techniques, this framework offers valuable insights for developers at all levels.
As AI agents continue to evolve and become more integrated into our digital experiences, the ability to visualize and communicate these complex systems becomes increasingly important. Tools like PageOn.ai play a crucial role in bridging the gap between technical implementation and human understanding.
I encourage you to explore the resources provided in this guide, experiment with the various design patterns, and consider how visualization tools can enhance your AI agent development process. Whether you're building your first agent or scaling a complex multi-agent system, clear visual representations will help you create more effective, trustworthy, and valuable AI solutions.
You Might Also Like
Beyond Bullet Points: Transform Your Text with Animated Visuals | PageOn.ai
Discover how to transform static bullet points into dynamic animated visuals that boost engagement by 40%. Learn animation fundamentals, techniques, and AI-powered solutions from PageOn.ai.
The Strategic GIF Guide: Creating Memorable Moments in Professional Presentations
Discover how to effectively use GIFs in professional presentations to create visual impact, enhance audience engagement, and communicate complex concepts more memorably.
The Art of Data Storytelling: Creating Infographics That Captivate and Inform
Discover how to transform complex data into visually compelling narratives through effective infographic design. Learn essential techniques for enhancing data storytelling with visual appeal.
Revolutionizing Market Entry Presentations with ChatGPT and Gamma - Strategic Impact Guide
Learn how to leverage ChatGPT and Gamma to create compelling market entry presentations in under 90 minutes. Discover advanced prompting techniques and visual strategies for impactful pitches.
