Mastering n8n-nodes-mcp: A Comprehensive Integration Guide

Introduction to n8n-nodes-mcp

As I've explored the world of workflow automation, I've found that the integration of Model Context Protocol (MCP) with n8n represents a significant advancement in how we can leverage AI within our automation workflows. This powerful combination allows AI models to interact with external tools and data sources in a standardized way, opening up new possibilities for intelligent automation.

Key Benefits of n8n-MCP Integration

• Enhanced AI capabilities: MCP enables n8n workflows to leverage Large Language Models for dynamic decision-making, including sentiment analysis, content generation, and complex reasoning tasks.
• Standardized data access: By providing a unified protocol, MCP significantly reduces integration complexity when working with diverse data sources and external systems.
• Scalable architecture: Both n8n and MCP support self-hosting and containerization, making them ideal for enterprise-grade deployments that need to scale with growing demands.

The popularity of this integration is evident from its current position in the n8n ecosystem. According to recent statistics, n8n-nodes-mcp ranks 7th among community nodes with over 162,000 downloads, highlighting the growing interest in AI-powered workflow automation.

Core Architecture Components

Understanding the architecture of n8n-nodes-mcp is essential for successful implementation. The integration consists of two primary components that work together to enable seamless communication between n8n workflows and MCP clients.

flowchart TD
    Client[MCP Client\nExternal AI Model] -->|Connects to| MCPClient[MCP Client Node]
    MCPClient -->|Executes| n8nWorkflow[n8n Workflow]

    n8nWorkflow -->|Exposes via| MCPServer[MCP Server Trigger Node]
    MCPServer -->|Accessible by| Client

    subgraph "n8n Instance"
        MCPClient
        n8nWorkflow
        MCPServer
        Bridge[Integration Bridge]
    end

    Bridge -->|Data Format\nConversion| MCPClient
    Bridge -->|Authentication &\nCredential Management| MCPServer

    style Client fill:#f9f9f9,stroke:#333,stroke-width:1px
    style n8nInstance fill:#fff5e6,stroke:#FF8000,stroke-width:2px
    style MCPClient fill:#ffe0b3,stroke:#FF8000,stroke-width:1px
    style MCPServer fill:#ffe0b3,stroke:#FF8000,stroke-width:1px
    style n8nWorkflow fill:#e6f7ff,stroke:#0099cc,stroke-width:1px
    style Bridge fill:#e6ffe6,stroke:#00cc66,stroke-width:1px


MCP Client Node

The MCP Client Node serves as the gateway for n8n workflows to connect with external MCP servers. I've found this component particularly valuable when integrating with AI models that expose their capabilities through the MCP protocol.

• Connection capabilities: Enables workflows to connect to external MCP servers, access resources, and execute tools.
• Transport support: Supports both Server-Sent Events (SSE) and the newer HTTP Streamable transport, with the latter being recommended for all new implementations.
• Tool execution: Allows workflows to leverage AI models' capabilities by executing tools defined on MCP servers.

MCP Server Trigger Node

Conversely, the MCP Server Trigger Node transforms n8n into an MCP server itself, making n8n tools and workflows available to external MCP clients such as AI models.

• Entry point functionality: Acts as an entry point for MCP clients into n8n, exposing a URL that clients can interact with.
• Tool exposure: Unlike conventional trigger nodes, it specifically connects to and executes tool nodes, allowing clients to list available tools and call individual tools to perform work.
• Workflow exposure: Custom n8n Workflow Tool nodes can be attached to expose entire workflows to MCP clients.

Integration Bridge Components

The integration bridge forms the crucial link between the MCP protocol and n8n's internal data structures, handling several critical functions:

• Data format conversion: Translates between MCP's data format and n8n's internal data structures, ensuring seamless communication.
• Authentication management: Handles token-based authentication and credential management for secure connections.
• Error handling: Provides comprehensive error handling and logging to facilitate debugging and maintenance.

By understanding these core components, I can better plan and implement MCP integrations within my n8n workflows, ensuring optimal functionality and performance. The MCP architecture blueprint provides additional insights into how these components work together in a broader AI agent ecosystem.

Installation and Configuration Process

Installing and configuring n8n-nodes-mcp requires careful attention to prerequisites and proper setup steps. I'll walk through the entire process to ensure a smooth implementation.

Prerequisites

• Self-hosted n8n instance: This can be set up using Docker, Docker Compose, or direct installation on a server.
• Environment variable configuration: The N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE environment variable must be set to true.
• Admin access: You'll need administrator privileges to install community nodes.

Step-by-Step Installation Guide

flowchart TD
    A[Start Installation] -->|Step 1| B[Configure Environment Variable]
    B -->|Step 2| C{Using Docker?}
    C -->|Yes| D[Update docker-compose.yml]
    C -->|No| E[Set env variable directly]
    D -->|docker-compose down && docker-compose up -d| F[Restart n8n]
    E -->|Restart service| F
    F -->|Step 3| G[Open n8n Settings]
    G -->|Navigate to| H[Community Nodes]
    H -->|Enter package name| I[n8n-nodes-mcp]
    I -->|Accept risks| J[Install Node]
    J -->|Wait for installation| K[Verify in Node Selector]
    K -->|Search for "MCP"| L{Found MCP Nodes?}
    L -->|Yes| M[Installation Successful]
    L -->|No| N[Troubleshoot]
    N -->|Check logs| A

    style A fill:#ffe0b3,stroke:#FF8000,stroke-width:1px
    style M fill:#e6ffe6,stroke:#00cc66,stroke-width:1px
    style N fill:#ffcccc,stroke:#cc0000,stroke-width:1px


1. Configure environment variables:

   If using Docker Compose, add the following to your docker-compose.yml file:

   environment:
     - N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true

   Then restart your n8n container:

   docker-compose down && docker-compose up -d

2. Install the MCP Node:
   • In n8n, navigate to Settings > Community Nodes
   • Enter n8n-nodes-mcp in the npm Package Name field
   • Check the box acknowledging the risks of community nodes
   • Click Install
3. Verify Installation:

   In the n8n workflow editor, search for "MCP" in the node selector. You should see MCP Client and MCP Server Trigger nodes available.

Configuration Options and Best Practices

Once installed, I recommend the following configuration best practices:

• Transport selection: While SSE (Server-Sent Events) is still supported for legacy compatibility, HTTP Streamable is now the recommended transport method for all new implementations due to its improved performance and future compatibility.
• Security considerations: When exposing n8n as an MCP server, implement proper authentication and consider using HTTPS to secure the connection. The MCP Server Trigger node provides both test and production URLs - use test for development and production for deployment.
• Performance optimization: Design your workflows with efficiency in mind, minimizing the number of calls between the MCP client and server. This approach, as recommended in the MCP implementation roadmap, ensures better performance and reduced latency.

By following these installation and configuration guidelines, I've been able to successfully integrate MCP capabilities into my n8n workflows, opening up new possibilities for AI-powered automation.

Building Practical MCP Workflow Systems

With the installation complete, I can now focus on building practical MCP workflow systems that leverage the full potential of this integration. Let's explore how to create effective systems that connect AI agents with powerful n8n workflows.

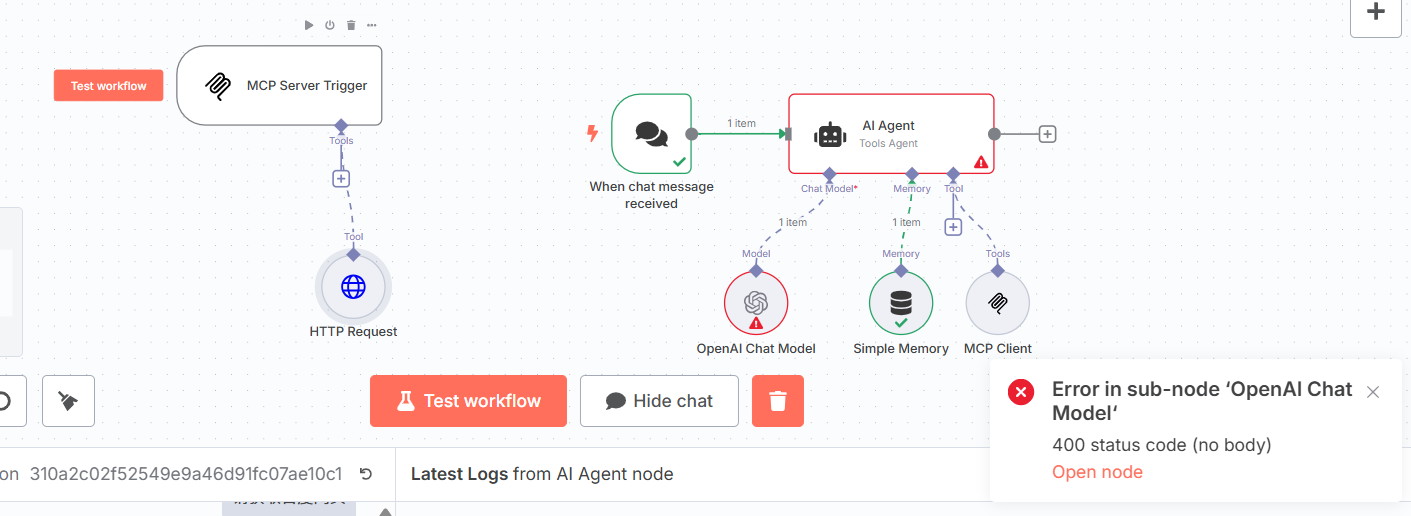

Creating an n8n Workflows MCP Server

Creating an MCP server from your existing n8n workflows involves several key steps:

1. Add an MCP Server Trigger node: This serves as the entry point for MCP clients, exposing your workflows as tools.
2. Connect workflow tools: Attach Custom n8n Workflow Tool nodes to the MCP Server Trigger to expose existing workflows.
3. Configure authentication: Set up proper authentication to secure your MCP server endpoints.
4. Test the connection: Use an MCP client (like Claude Desktop or a custom implementation) to test the connection and tool discovery.

Implementing AI Agent Interactions

sequenceDiagram
    participant AI as AI Agent
    participant MCP as MCP Client
    participant n8n as n8n Workflow
    participant DB as Database

    AI->>MCP: Request available tools
    MCP->>n8n: List tools request
    n8n-->>MCP: Available tools response
    MCP-->>AI: Tool descriptions

    AI->>MCP: Execute specific tool
    MCP->>n8n: Tool execution request
    n8n->>DB: Query data
    DB-->>n8n: Data response
    n8n-->>MCP: Execution result
    MCP-->>AI: Formatted result

    Note over AI,n8n: Context is maintained throughout the interaction


Effective AI agent interactions with n8n workflows involve:

• Context retrieval: The AI agent first gathers context about available tools and their capabilities through the MCP protocol.
• Intelligent workflow assembly: Based on the context, the agent determines which tools to use and how to chain them together to accomplish the desired task.
• Validation and execution: The agent validates inputs before sending them to the workflow and processes the results returned by the workflow.

Integration Patterns with Popular Services

I've successfully implemented MCP workflow systems with several popular services:

Creating MCP component diagrams has been invaluable in my implementation process, allowing me to visualize the connections between different services and understand the flow of data through the system.

Advanced Implementation Techniques

As I've gained experience with n8n-nodes-mcp, I've developed several advanced techniques that enhance the functionality and efficiency of MCP workflow systems. These approaches can help you take your implementations to the next level.

Custom Tool Development

Creating specialized tools for specific AI tasks can significantly enhance the capabilities of your MCP workflow system:

• Custom Code Nodes: Leverage n8n's Code node to create specialized functions that perform complex operations not available in standard nodes.
• Function Node Development: For more complex requirements, develop custom Function nodes that can be reused across workflows.
• Testing Methodology: Implement a systematic testing approach for custom tools:
  • Unit testing for individual functions
  • Integration testing for tool interactions
  • End-to-end testing for complete workflows

Multi-Agent Orchestration Approaches

flowchart TB
    subgraph "Multi-Agent System"
        Coordinator[Coordinator Agent]

        subgraph "Specialized Agents"
            DataAgent[Data Processing Agent]
            AnalysisAgent[Analysis Agent]
            CommunicationAgent[Communication Agent]
        end

        Coordinator -->|Delegates tasks| DataAgent
        Coordinator -->|Delegates tasks| AnalysisAgent
        Coordinator -->|Delegates tasks| CommunicationAgent

        DataAgent -->|Returns results| Coordinator
        AnalysisAgent -->|Returns results| Coordinator
        CommunicationAgent -->|Returns results| Coordinator
    end

    subgraph "n8n MCP Infrastructure"
        MCPServer[MCP Server Trigger]
        DataTools[Data Processing Tools]
        AnalysisTools[Analysis Tools]
        CommunicationTools[Communication Tools]
        StateManager[State Management]
    end

    DataAgent -.->|Uses| DataTools
    AnalysisAgent -.->|Uses| AnalysisTools
    CommunicationAgent -.->|Uses| CommunicationTools
    Coordinator -.->|Manages| StateManager

    style Coordinator fill:#ffe0b3,stroke:#FF8000,stroke-width:2px
    style DataAgent fill:#e6f7ff,stroke:#0099cc,stroke-width:1px
    style AnalysisAgent fill:#e6f7ff,stroke:#0099cc,stroke-width:1px
    style CommunicationAgent fill:#e6f7ff,stroke:#0099cc,stroke-width:1px
    style MCPServer fill:#ffe0b3,stroke:#FF8000,stroke-width:1px


Orchestrating multiple AI agents within an n8n-MCP system enables complex, collaborative workflows:

• Agent Communication Patterns:
  • Hub-and-spoke: A central coordinator agent delegates tasks to specialized agents
  • Peer-to-peer: Agents communicate directly with each other when needed
  • Hierarchical: Agents are organized in a management structure with clear reporting lines
• Task Distribution: Implement frameworks for breaking down complex tasks and distributing them to appropriate agents based on their specializations.
• State Management: Maintain consistent state across workflows and agent interactions using:
  • Database storage for persistent state
  • In-memory caching for temporary state
  • Message passing for state updates between agents

Performance Optimization Strategies

Optimizing performance is crucial for responsive and efficient MCP workflow systems:

• Minimizing API Calls: Design workflows to minimize the number of back-and-forth calls between the MCP client and server. Batch operations where possible and design tools that accomplish complete tasks rather than granular operations.
• Caching Mechanisms: Implement caching for frequently accessed data and results to reduce redundant processing:
  • In-memory caching for short-lived, frequently accessed data
  • Redis or similar solutions for distributed caching across nodes
  • Intelligent cache invalidation strategies to maintain data freshness
• Resource Monitoring: Utilize PageOn.ai's Deep Search capabilities to analyze resource utilization patterns and identify optimization opportunities in complex workflows.

These advanced implementation techniques have allowed me to create sophisticated MCP workflow systems that are both powerful and efficient. By focusing on custom tool development, multi-agent orchestration, and performance optimization, I've been able to unlock the full potential of the n8n-nodes-mcp integration.

Troubleshooting and Best Practices

Even with careful planning and implementation, issues can arise when working with n8n-nodes-mcp. In this section, I'll share common challenges I've encountered and the strategies I've used to overcome them.

Common Implementation Challenges

flowchart TD
    A[Issue Detected] --> B{Connection Issue?}
    B -->|Yes| C{Transport Type?}
    B -->|No| D{Authentication Issue?}

    C -->|SSE| E[Check SSE Configuration]
    C -->|HTTP Streamable| F[Verify HTTP Headers]
    E --> G[Test with curl]
    F --> G

    D -->|Yes| H[Verify Credentials]
    D -->|No| I{Data Format Issue?}

    H --> J[Check Token Validity]
    J --> K[Regenerate Tokens if Needed]

    I -->|Yes| L[Inspect Payload Format]
    I -->|No| M[Check Server Logs]

    L --> N[Validate Against Schema]
    N --> O[Fix Data Structure]

    M --> P[Enable Debug Mode]
    P --> Q[Analyze Error Messages]

    G --> R[Resolution]
    K --> R
    O --> R
    Q --> R

    style A fill:#ffe0b3,stroke:#FF8000,stroke-width:1px
    style R fill:#e6ffe6,stroke:#00cc66,stroke-width:1px


Here are the most common challenges I've faced and their solutions:

Debugging Techniques

Effective debugging is essential for resolving issues quickly:

• Log Analysis: Enable detailed logging in n8n and use PageOn.ai's AI Blocks to visualize and analyze log patterns, making it easier to identify the root cause of issues.
• Component Testing: Isolate and test individual components of your MCP workflow system to pinpoint where issues are occurring.
• End-to-End Validation: Use test clients to simulate real-world usage and validate the entire system from client request to response.

Maintenance and Update Considerations

Maintaining an n8n-nodes-mcp implementation requires attention to:

• Version Compatibility: Stay informed about compatibility between n8n versions and the MCP nodes package. Test updates in a staging environment before applying them to production.
• Migration Planning: When upgrading to new versions or migrating between environments, create a detailed plan that includes:
  • Backup of all workflows and credentials
  • Documentation of custom configurations
  • Testing strategy for post-migration validation
• Backup and Recovery: Implement regular backups of your n8n instance, including workflows, credentials (securely stored), and custom configurations. Test recovery procedures periodically to ensure they work when needed.

Case Studies and Implementation Examples

To illustrate the practical applications of n8n-nodes-mcp, I'll share some real-world case studies and implementation examples that demonstrate the power and versatility of this integration.

AI-Powered Automation Scenarios

Visualization of Complex MCP Architectures

Visualizing complex MCP architectures is essential for understanding system design and communication flows. Using PageOn.ai, I've created:

• Interactive component diagrams: Visual representations of how different components in an MCP system interact, making it easier to understand the overall architecture.
• Decision trees: Flowcharts that illustrate the decision-making process within AI agents and how they interact with n8n workflows.
• Data flow maps: Visualizations of how data moves through the system, from input sources through processing workflows to output destinations.

These visualizations have been invaluable for both planning new implementations and troubleshooting existing ones. The MCP server configuration dashboards have been particularly useful for monitoring and maintaining complex systems.

Performance Metrics and Success Indicators

Measuring the success of n8n-nodes-mcp implementations involves tracking several key metrics:

These metrics demonstrate the significant impact that n8n-nodes-mcp can have on workflow efficiency, accuracy, and user experience. By tracking these indicators, I can quantify the value of MCP integration and identify areas for further improvement.

Future Directions and Ecosystem Evolution

The n8n-nodes-mcp ecosystem is rapidly evolving, with new capabilities and integration opportunities emerging regularly. Looking ahead, I see several exciting trends and possibilities that will shape the future of this technology.

Emerging Trends in the n8n-MCP Ecosystem

timeline
    title Evolution of n8n-nodes-mcp Ecosystem
    section Current
        SSE & HTTP Streamable : Transport options
        Token-based auth : Security
        Basic tool discovery : Discovery
    section Near Future (6-12 months)
        WebSocket support : New transport
        OAuth & OIDC integration : Enhanced security
        Semantic tool discovery : Improved discovery
    section Mid-term (1-2 years)
        P2P mesh networking : Advanced transport
        Zero-trust architecture : Enterprise security
        Context-aware tool selection : AI-powered discovery
    section Long-term (2+ years)
        Quantum-resistant encryption : Future-proof security
        Federated tool ecosystems : Cross-platform integration
        Autonomous workflow generation : Self-optimizing systems


Several key trends are emerging in the n8n-MCP ecosystem:

• New transport mechanisms: While HTTP Streamable is currently the recommended transport, we're likely to see additional options like WebSocket support for more efficient real-time communication.
• Enhanced security models: As MCP adoption grows in enterprise environments, more sophisticated security models will emerge, including OAuth and OpenID Connect integration, and eventually zero-trust architectures.
• Cross-platform standardization: The MCP protocol is likely to become more standardized across different platforms, enabling seamless integration between diverse AI systems and automation tools.

Potential Integration Opportunities

The future holds numerous integration opportunities for n8n-nodes-mcp:

• Specialized AI model providers: Beyond the current general-purpose LLMs, integration with specialized AI models for specific industries or tasks will expand the capabilities of MCP workflows.
• Industry-specific tools: Integration with tools designed for specific industries like healthcare, finance, or legal will enable more targeted automation solutions.
• Community-driven extensions: As the n8n community continues to grow, we'll see more community-developed extensions and tools that enhance the MCP ecosystem.

Implementation Planning Roadmap

Planning a successful n8n-nodes-mcp implementation requires a clear roadmap. Using PageOn.ai, I've created visualization tools for:

• Phased deployment planning: Visual roadmaps that outline the stages of implementation, from initial setup to full deployment.
• Dependency mapping: Identifying and visualizing the dependencies between different components of the system to ensure proper sequencing of implementation tasks.
• Bottleneck identification: Analyzing potential bottlenecks in the implementation process and developing solutions to address them before they cause delays.
